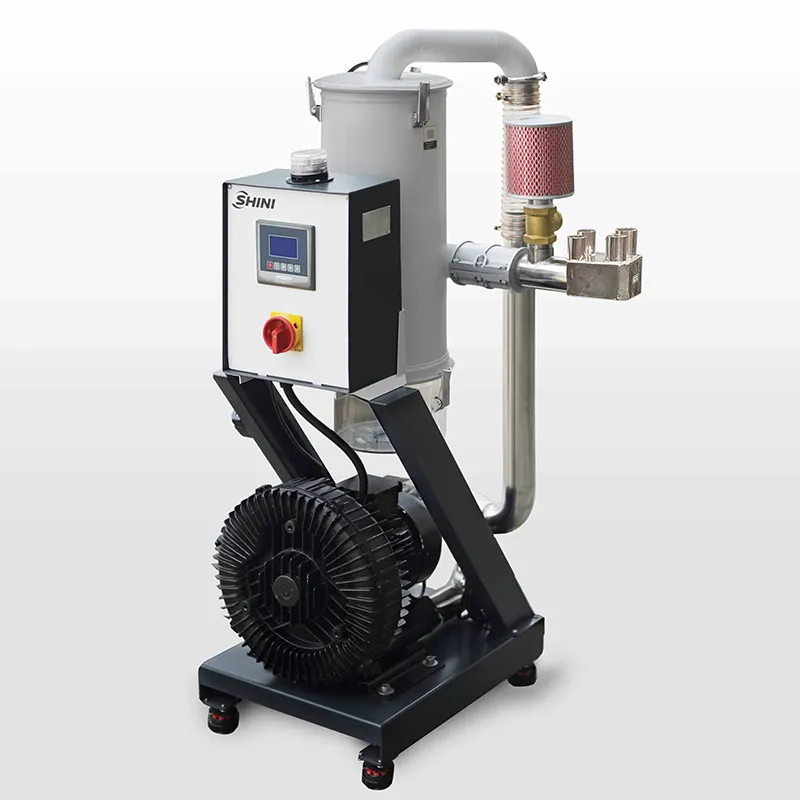

SAL-UG122/124

One-to-Two/One-to-Four Separate Hopper Loader

Multi-station hopper loader for conveying plastic granules to hopper or processing machine

One-to-Two/One-to-Four Separate Hopper Loader

Designed to meet the needs of complex industrial environments, this separate hopper loader enhances the logistical efficiency of plastic material handling. Suitable for a variety of configurations, it ensures a streamlined process in distributing materials to multiple destinations or machines, effectively supporting high or long-distance conveying requirements.

Features
  • Features an LED display for easy operation.
  • Compatible with either two or four hoppers, making it suitable for high or long-distance conveying.
  • Includes a dual-stage cyclone dust collector and a large dust tank for quick and easy maintenance.
  • All models are equipped with vacuum release valves to protect the blower and extend the equipment's lifespan.
  • Models with 5HP or more come standard with an automatic spray cleaning system, reducing the frequency of manual cleaning.
  • Standard 485 communication interface facilitates remote monitoring for automated production setups.
Request a Quote

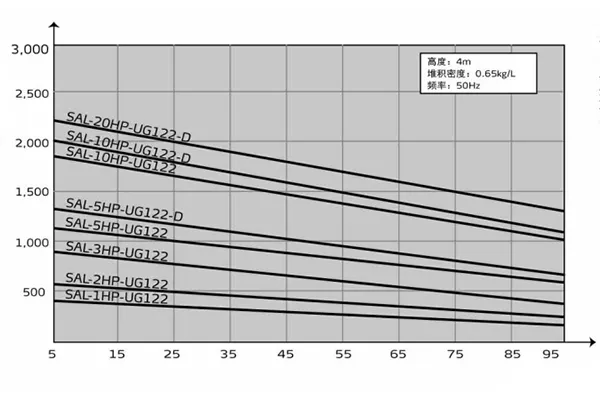

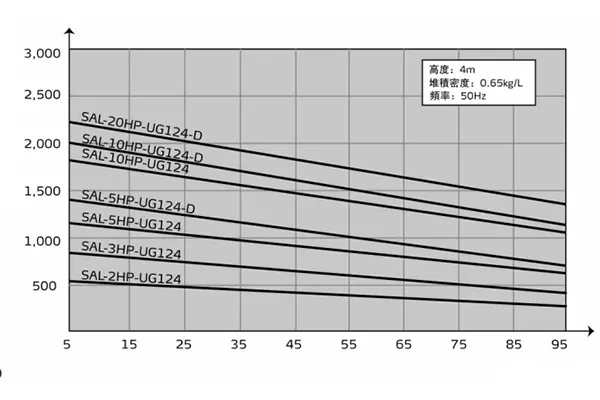

Diagram
  • Diagram
  • Diagram
Applications

This separate hopper loader is ideal for use with multiple dehumidifying dryers for transporting various plastic materials. It also supports efficient material transportation to different molding machines or hoppers, whether operating in a one-to-two or one-to-four configuration, offering significant cost savings.

Specifications
SAL-UG122
Model Motor power (kW) Phase Dimensions (mm) H×W×D Weight (kg) Hopper receiver Conveying pipe diameter (inch) Vacuum pipe diameter (inch) Conveying capacity (kg/hr)
SAL-1HP-UG122 0.75 3φ 990×350×488 52 2×SHR-3U-S 1.5 2 400
SAL-2HP-UG122 1.5 3φ 990×350×488 56 2×SHR-6U-S 1.5 2 550
SAL-3HP-UG122 1.85 3φ 990×350×488 60 2×SHR-12U-S 1.5 2 800
SAL-5HP-UG122 3.75 3φ 1410×720×570 175 2×SHR-12U-S 1.5 2 1200
SAL-5HP-UG122-D 3 1410×720×570 180 2×SHR-12U-S 1350
SAL-10HP-UG122 7.5 3φ 2020×840×820 185 2×SHR-24U/36U-S 2 2.5 1700/1800
SAL-10HP-UG122-D 2020×980×820 192 2×SHR-24U/36U-S 1900/2000
SAL-20HP-UG122-D 11 3φ 2145×1055×1000 246 2×SHR-48U/96U-S 2.5 3 2200/2300
Notes:
1) Test conditions of conveying capacity: Plastic material of 0.65kg/L in bulk density and 3-5mm in diameter
Vertical conveying height: 4m
Horizontal conveying distance: 5m
2) Power: 3Φ, 400VAC, 50Hz		 We reserve the right to change specifications without prior notice.
SAL-UG124
Model Motor power (kW) Phase Dimensions (mm) H×W×D Weight (kg) Hopper receiver Conveying pipe diameter (inch) Vacuum pipe diameter (inch) Conveying capacity (kg/hr)
SAL-2HP-UG124 1.5 3φ 990×350×533 60 4×SHR-3U-S 1.5 2 550
SAL-3HP-UG124 1.85 65 4×SHR-6U-S 800
SAL-5HP-UG124 3.75 3φ 1410×825×585 175 4×SHR-12U-S 1.5 2 1200
SAL-5HP-UG124-D 3 1410×825×585 180 4×SHR-12U-S 1350
SAL-10HP-UG124 7.5 3φ 2020×930×855 185 4×SHR-24U/36U-S 2 2.5 1700/180C
SAL-10HP-UG124-D 2020×1065×855 192 4×SHR-24U/36U-S 1900/2000
SAL-20HP-UG124-D 11 3φ 2145×1150×1000 246 4×SHR-48U/96U-S 2.5 3 2200/2300
Notes:
1) Test conditions of conveying capacity: Plastic material of 0.65kg/L in bulk density and 3-5mm in diameter
Vertical conveying height: 4m
Horizontal conveying distance: 5m
2) Power: 3Φ, 400VAC, 50Hz		 We reserve the right to change specifications without prior notice.
