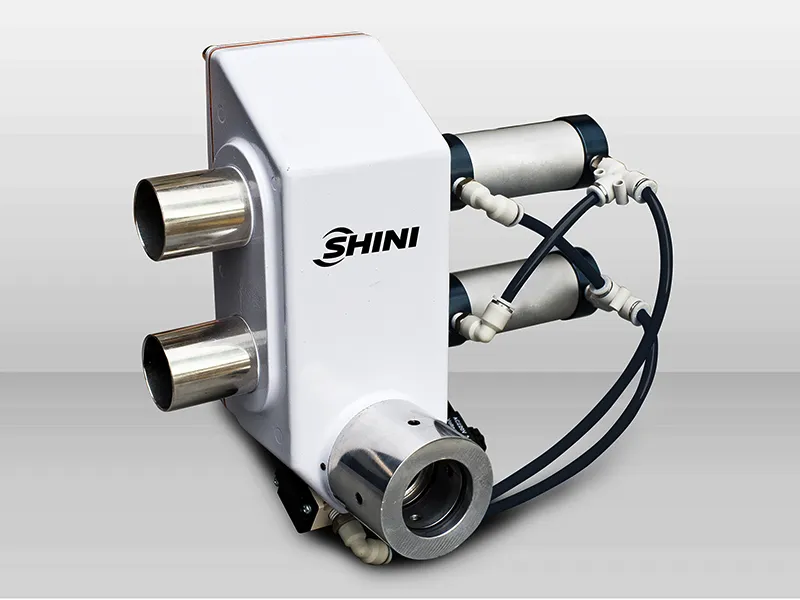

SPV-U

Proportional Valve

Mixing element for mixing regrind and virgin materials in proportion

Proportional Valve

This proportional valve is designed to enhance the efficiency and accuracy of material mixing in plastic processing. With a unique design and stable performance, it ensures smooth operation and precise control.

Features
  • The special valve design improves material transport, reducing blockages and ensuring consistent flow.
  • Ensures stable performance with accurate cylinder actions, maintaining precise mixing ratios.
  • Allows selection between 1 to 4 layer operation modes, providing more uniform and efficient mixing.
Request a Quote
Specifications
Model Compressed air Max. material flow Pipe size (inch) Dimensions (mm) H×W×D Weight (kg)
SPV-38U-(C) 3kgf/cm² 350kg/hr 1.5 270×260×150 3.5
SPV-50U-(C) 3kgf/cm² 550kg/hr 2 270×260×150 3.8
Notes:
1) The above maximum material flow is based on the plastic particles of 0.65kg/L in bulk density and 3-5mm in diameter
2) Power: 1φ, 230VAC, 50Hz		 We reserve the right to change specifications without prior notice.
