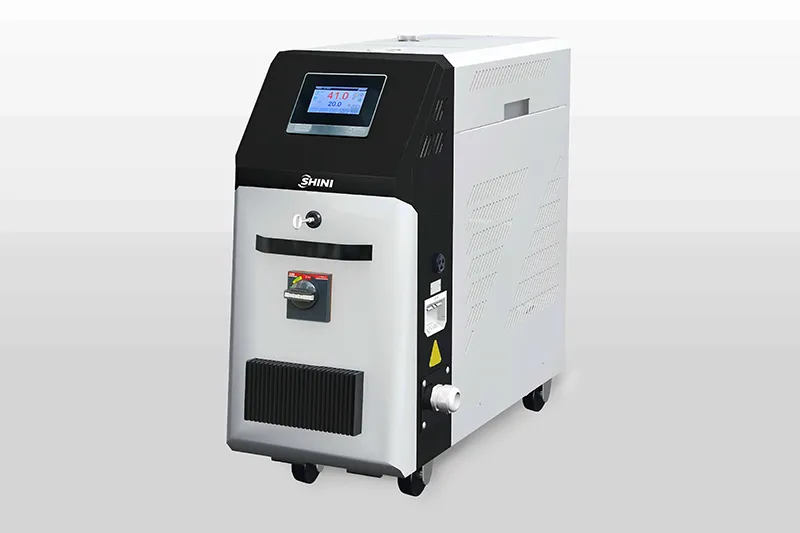

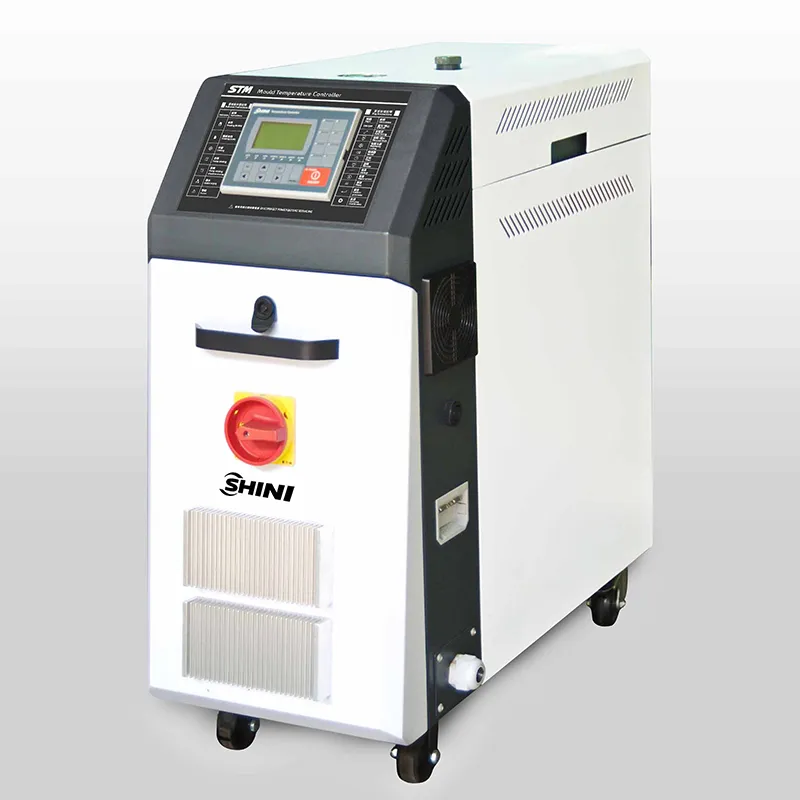

Mould Temperature Controller (High Temp Oil Heater)
Oil temperature control unit for heating mould up to 350°C with control accuracy of ±0.5℃
The high-temperature oil heater mould temperature controller is designed to achieve exceptional temperature control in the plastic processing industry, reaching temperatures up to 350°C. This system ensures precise temperature management and reliable performance, making it ideal for applications that require consistent and high-temperature conditions.
- Reaches up to 350°C with precise temperature control accuracy of ±0.5°C.
- Equipped with a 3.2" LCD for intuitive display and easy operation.
- Includes a weekly timer function, supports multiple languages (English/Chinese), and allows for temperature unit conversion between Celsius and Fahrenheit.
- Utilizes a full digital P.I.D. segmented control system with SSR (Solid State Relay) heating output for reliable temperature management.
- Features a stainless steel, high-pressure, explosion-proof, and leak-resistant magnetic drive pump.
- Incorporates reverse power protection, pump overload protection, over-temperature protection, low liquid level protection, and an automatic fault detection and alarm system.
- All heating elements are made of stainless steel for enhanced durability.
- Includes an RS485 communication interface for centralized monitoring and integration with main control systems.
- Standard model includes a built-in buzzer for immediate alert notifications.
This oil heater mould temperature controller is primarily used for heating and maintaining consistent temperatures in molds. Utilizing oil as the heat transfer medium prevents rust in the mold's internal channels and offers better heating efficiency compared to water-based systems. It is ideal for high-temperature applications where mold maintenance and temperature stability are critical. The system can be customized with various optional components and accessories to meet specific plastic processing needs.
| Model | Max. temperature | Heater power (kW) | Pump power (kW) | Max. pump flow (L/min) | Max. pump pressure (bar) | Number of heating tank | Tank capacity (L) | Cooling method | Inlet/outlet size (Euro PT female thread) (inch) | Dimensions (mm) (H×W×D) | Weight (kg) | ||
| Main oil tank | Sub. oil tank | ||||||||||||
| 350℃ | 12 | 0.55 | 25.5 | 4.8 | 1 | 6 | 7 | Indirect cooling | 3/4 / 3/4 | 710×390×1020 | 90 | ||
| 350℃ | 18 | 1 | 50 | 5.8 | 2 | 9 | 12 | Indirect cooling | 1/1 | 940×430×1050 | 184 | ||
| Notes: 1) To ensure stable heating temperature, the pressure of cooling water should be kept in a range of 2bar - 5bar 2) Pump test conditions: power of 50Hz, purified water at 20℃ (±10% tolerance for either maximum flow rate or maximum pressure) 3) Power: 3φ, 400VAC, 50Hz | We reserve the right to change specifications without prior notice. | ||||||||||||
