SAL-UG

Euro Design Separate-Vacuum Hopper Loader

Stainless steel hopper loader for conveying plastic granules over long distance

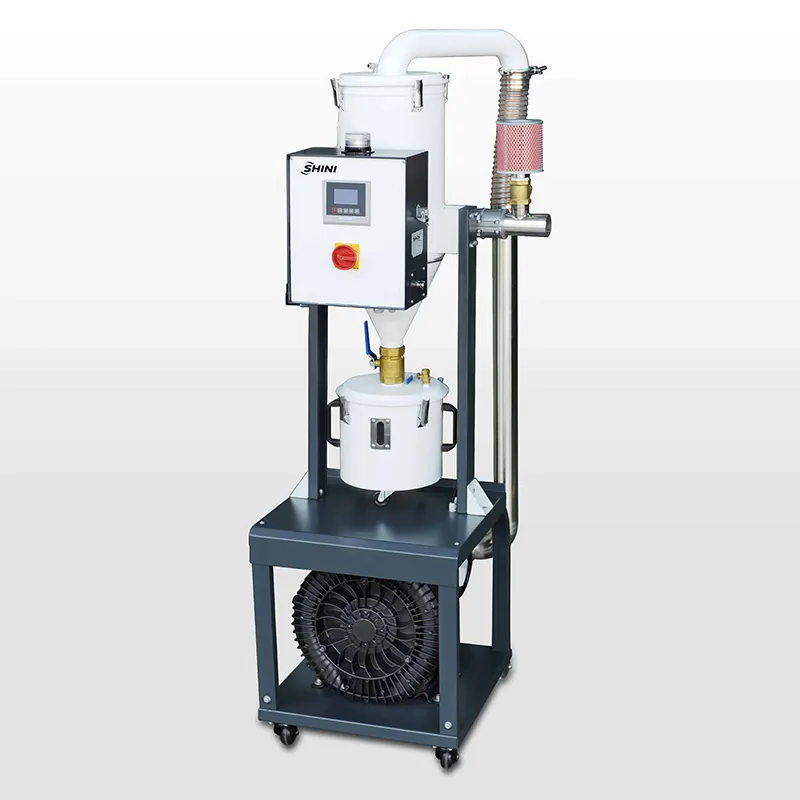

Euro Design Separate-Vacuum Hopper Loader

This Euro design separate-vacuum hopper loader stands out in the industry for its efficient and contamination-free material handling capabilities, designed with maintenance ease in mind. Its robust design integrates innovative dust filtration and precise material control technologies, ensuring both performance and durability.

Features
  • Uses a dual-stage cyclone system and a large dust tank that simplify maintenance and enhance the cleanliness of operations.
  • Features a proportioning valve that precisely controls material ratios, facilitating accurate mixing processes.
  • Includes a release valve to safeguard the fan, extending the equipment's operational life.
  • Utilizes stainless steel hoppers to preserve material purity throughout the process.
  • Equipped with a filter spray cleaning device, promoting longevity and consistent performance.
Request a Quote
Specifications
SAL-UGP (hopper with cloth filter, suitable for conveying materials containing 30% powder)
Main unit Hopper receiver Filter cloth quantity Dimensions of main unit (mm) H×W×D
Model Motor power
(kW)		 Phase Applied to Conveying pipe diameter
(inch)		 Vaccum pipe diameter
(inch)		 Hopper capacity (L) Hopper diameter (mm) Conveying capacity
(kg/hr)
SAL-1HP-UGP 0.75 3φ SHR-P-12U 1.5 1.5 12 φ320 300 2 1000×400×500
SAL-2HP-UGP 1.5 3φ SHR-P-30U 30 φ420 400 4
SAL-3HP-UGP 1.85 3φ SHR-P-60I 2 2 60 φ542 650 6
SAL-5HP-UGP 3.75 3φ 1200 1380×470×600
SAL-5HP-UGP-D 3.0 1350 1380×670×600
SAL-10HP-UGP 7.5 3φ SHR-P-90L 2.5 2.5 90 φ542 2000 7 2015×620×795
SAL-10HP-UGP-D 2015×790×795
SAL-UGP (hopper with plate filter, suitable for conveying materials containing 100% powder)
Main unit Hopper receiver Filter cloth quantity Dimensions of main unit (mm) H×W×D
Model Motor power
(kW)		 Phase Applied to Conveying pipe diameter
(inch)		 Vaccum pipe diameter
(inch)		 Hopper capacity (L) Hopper diameter (mm) Conveying capacity
(kg/hr)
SAL-1HP-UGP 0.75 3φ SHR-P-30U-2 1.5 1.5 30 φ420 300 2 1000×400×500
SAL-2HP-UGP 1.5 3φ 400
SAL-3HP-UGP 1.85 3φ SHR-P-60U-3 2 2 60 φ542 650 3
SAL-5HP-UGP 3.75 3φ 1200 1380×470×600
SAL-5HP-UGP-D 3.0 1350 1380×670×600
SAL-10HP-UGP 7.5 3φ SHR-P-90U-5 2.5 2.5 90 φ542 2000 5 2015×620×795
SAL-10HP-UGP-D 2015×790×795
Notes:
1) Test conditions of conveying capacity: Using plastic material (non-sticky dry powder) of 0.6kg/L in bulk density
Vertical conveying height: 4m
Horizontal conveying distance: 5m
2) Power: 3φ, 400VAC, 50Hz		 We reserve the right to change specifications without prior notice.
