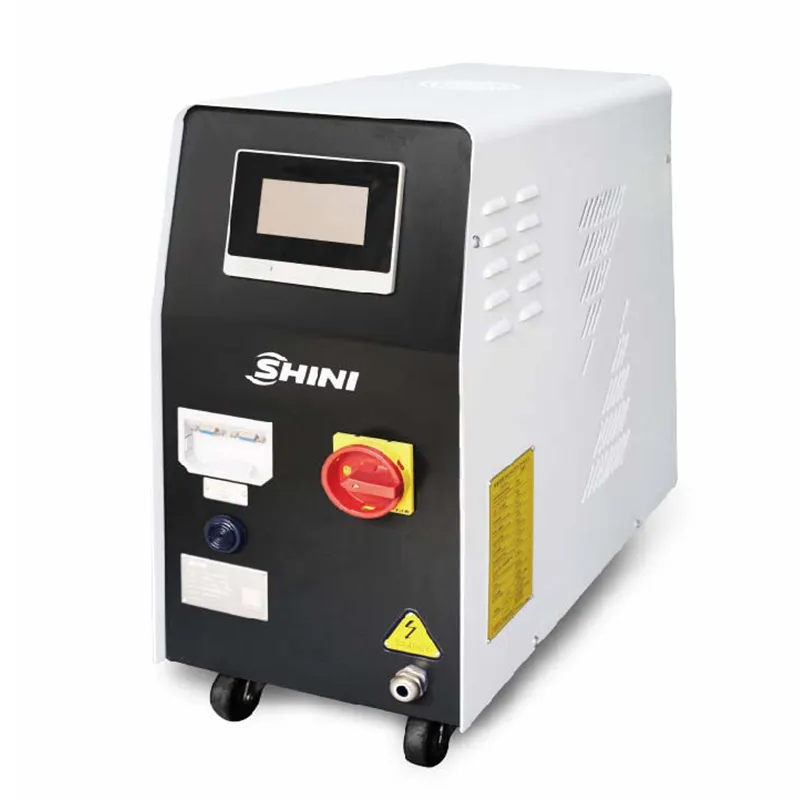

Mould Temperature Controller (Dual Purpose Heater)
Hot oil and hot water temperature control unit for mould heating and temperature maintaining
Our dual-purpose mould temperature controller utilizes water or oil as a heat transfer medium, offering versatile temperature control solutions for plastic processing. This flexibility makes it suitable for various production requirements, enhancing operational efficiency and product quality.
- Uses water or oil as the heat medium, achieving temperatures up to 90°C with water and 160°C with oil.
- Employs a full digital P.I.D. control system, maintaining accuracy within ±0.5°C (0.9°F) for consistent processing.
- Equipped with switchable heating power options, allowing for 3kW, 6kW, or 9kW settings to adapt to different operational needs.
- Features pump reversal for air purging and negative pressure operation to ensure system reliability.
- Includes phase reversal protection, pump overload, over-temperature protection, and low liquid level alarms for enhanced safety.
- Comes with an RS485 communication interface for integration with central monitoring systems, facilitating remote management and control.
The dual-purpose mould temperature controller is ideal for heating and maintaining consistent temperatures in molds. Its capability to use either water or oil as the heat transfer medium allows for greater flexibility to meet the varied demands of plastic processing. The controller's switchable functionalities further enhance its adaptability to different production needs.
| Model | Max. temperature | Heater power (kW) | Pump power (kW) | Max. pump flow (L/min) | Max. pump pressure (bar) | Number of heating tank | Heating tank capacity (L) | Cooling method | Inlet/outlet size (Euro PT female thread) (inch) | Dimensions (mm) (H×W×D) | Weight (kg) | ||
| STM-907W/O | W:90℃ 0:160℃ | 9 | 0.55 | 40 | 3.2 | 1 | 16 | Indirect cooling | 314/31z | 630×270×770 | 47 | ||
| Notes: 1) To ensure stable heating temperature, the back pressure of inlet/outlet cooling water should not be lower than 0.5 bar 2) Pump test conditions: power of 50Hz, purified water at 20℃ (±10% tolerance for either maximum flow rate or maximum pressure) 3) Power: 3φ, 400VAC, 50Hz | We reserve the right to change specifications without prior notice. | ||||||||||||
